Reference architecture

Review the reference architecture for self-managed W&B deployments covering Kubernetes, MySQL, object storage, and networking.

This page describes a reference architecture for a W&B deployment and outlines the recommended infrastructure and resources to support a production deployment of the platform. Use it as a planning guide to size, provision, and integrate the components required for a reliable Self-Managed installation.

This page is intended for platform engineers, site reliability engineers, and infrastructure administrators who deploy and operate W&B on their own infrastructure.

Depending on your chosen deployment environment for W&B, different services can help to enhance the resiliency of your deployment.

For instance, major cloud providers offer managed database services that help to reduce the complexity of database configuration, maintenance, high availability, and resilience.

This reference architecture addresses common deployment scenarios and shows how you can integrate your W&B deployment with cloud vendor services for performance and reliability.

Before you start

Running any application in production comes with its own set of challenges, and W&B is no exception. Although W&B aims to streamline the process, complexities may arise depending on your architecture and design decisions. Typically, managing a production deployment involves overseeing components including hardware, operating systems, networking, storage, security, the W&B platform itself, and other dependencies. This responsibility extends to both the initial setup of the environment and its ongoing maintenance.

Consider carefully whether a Self-Managed approach with W&B is suitable for your team and your requirements.

A strong understanding of how to run and maintain production-grade application is an important prerequisite before you deploy Self-Managed W&B. If your team needs assistance, the W&B Professional Services team and partners offer support for implementation and optimization.

To learn more about managed solutions for running W&B instead of managing it yourself, refer to W&B Multi-tenant Cloud and W&B Dedicated Cloud.

Infrastructure

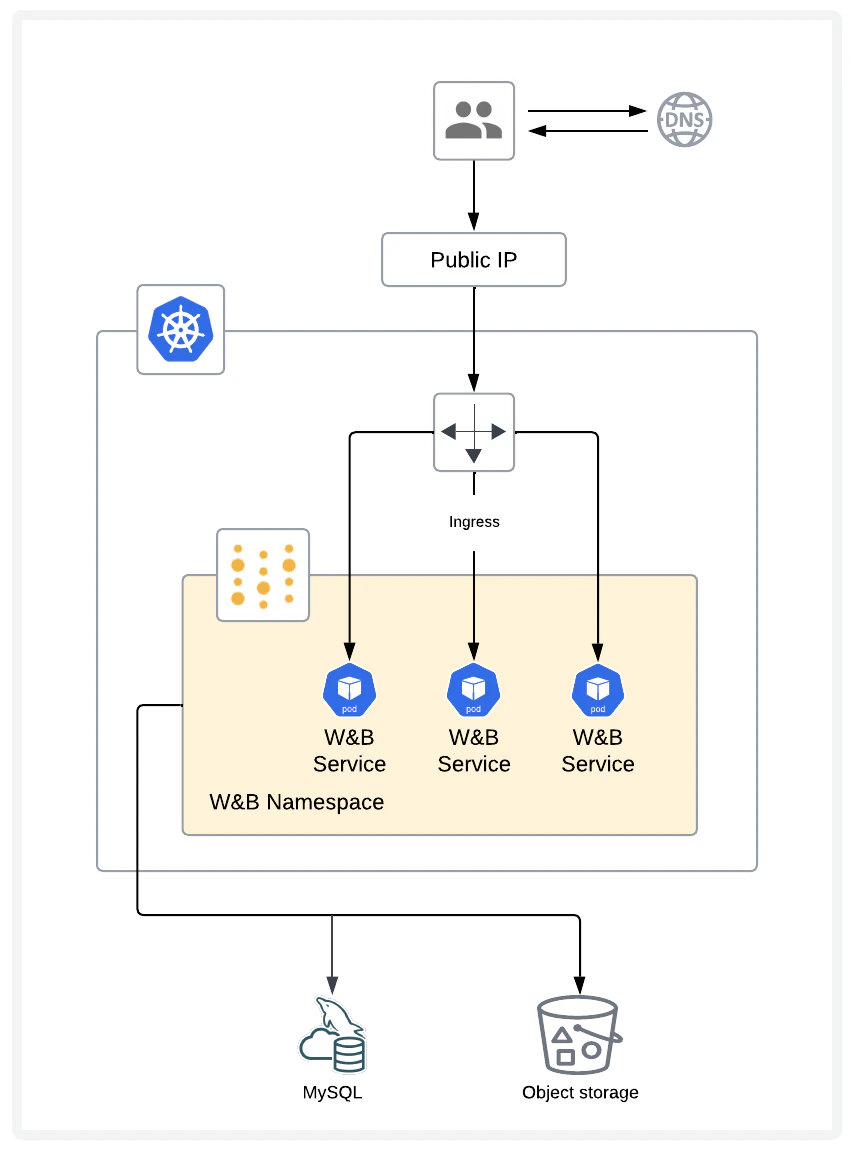

A W&B deployment consists of an application layer and a storage layer. The following diagram shows how these layers fit together, and the subsections that follow describe each one.

Application layer

The application layer consists of a multi-node Kubernetes cluster, with resilience against node failures. The Kubernetes cluster runs and maintains the W&B pods.

Storage layer

The storage layer consists of a MySQL database and object storage. The MySQL database stores metadata and the object storage stores artifacts such as models and datasets.

Infrastructure requirements

The following sections detail requirements for a W&B deployment, including Kubernetes cluster details, MySQL, Redis, object storage, software versions, networking, DNS, load balancer and ingress, SSL/TLS, and supported CPU architectures. Confirm that your environment meets each of these requirements before you begin a deployment.

Kubernetes

W&B deploys the W&B Server application as a Kubernetes Operator that deploys multiple pods. For this reason, W&B requires a Kubernetes cluster with:

• A fully configured and functioning ingress controller.
• The capability to provision Persistent Volumes.

W&B supports deployment on OpenShift Kubernetes clusters in cloud, on-premises, and air-gapped environments. For specific configuration instructions, see the OpenShift section in the Operator guide.

MySQL

W&B stores metadata in a MySQL database. The database’s performance and storage requirements depend on the shapes of the model parameters and related metadata. For example, the database grows in size as you track more training runs, and load on the database increases based on queries in run tables, user workspaces, and reports.

W&B strongly recommends using managed database services (such as AWS RDS Aurora MySQL, Google Cloud SQL for MySQL, or Azure Database for MySQL) for production deployments. Managed services provide automated backups, monitoring, high availability, and patching, and reduce operational complexity. See the Cloud provider instance recommendations section for specific service recommendations.

If you choose to deploy a self-managed MySQL database, consider the following:

• Backups: Periodically back up the database to a separate facility. W&B recommends daily backups with at least 1 week of retention.
• Performance: The database requires fast storage hardware, such as SSD or accelerated NAS.
• Monitoring: The database requires adequate CPU resources. Monitor the database server’s CPU load. If CPU usage is sustained at > 90% of the system for more than 5 minutes, consider adding CPU capacity.
• Availability: To meet your availability and durability requirements, W&B recommends configuring a hot standby deployment on a separate machine. The standby streams all updates in real time from the primary deployment and is ready to fail over if the primary server crashes, becomes corrupted, or experiences sustained downtime.

MySQL topology

For production, a managed MySQL service is the simplest path to high availability because the cloud provider handles failover, backups, and patching. Use the provider’s high availability option, for example, Aurora Multi-AZ on AWS.

If you run self-managed MySQL, use a primary database with a hot standby that receives a real-time replication stream and can take over on failure. W&B doesn’t support a multi-primary topology or read-only replicas for the application database.

MySQL database creation

For instructions to manually create the MySQL database and user, see the bare-metal guide MySQL database section.

MySQL configuration parameters

These parameters tune MySQL for the write patterns and schema changes that W&B performs at scale. If you’re running your own MySQL instance, configure MySQL with these settings:

binlog_format = 'ROW'
binlog_row_image = 'MINIMAL'
innodb_flush_log_at_trx_commit = 1
innodb_online_alter_log_max_size = 268435456
max_prepared_stmt_count = 1048576
sort_buffer_size = '67108864'
sync_binlog = 1

W&B has validated these settings for performance and reliability.

Redis

W&B depends on a single-node Redis 7.x deployment that W&B components use for job queuing and data caching. For convenience during testing and development of proofs of concept, W&B Self-Managed includes a local Redis deployment that isn’t appropriate for production deployments.

W&B can connect to a Redis instance in the following environments:

• AWS Elasticache.
• Google Cloud Memory Store.
• Azure Cache for Redis.
• Redis deployment hosted in your cloud or on-premises infrastructure.

Object storage

W&B requires object storage with pre-signed URL and CORS support, deployed in one of:

• CoreWeave AI Object Storage is an S3-compatible object storage service optimized for AI workloads.
• Amazon S3 is an object storage service that provides scalability, data availability, security, and performance.
• Google Cloud Storage is a managed service for storing unstructured data at scale.
• Azure Blob Storage is a cloud-based object storage solution for storing unstructured data like text, binary data, images, videos, and logs.
• S3-compatible storage such as MinIO Enterprise (AIStor), NetApp StorageGRID, or other enterprise-grade solutions hosted in your cloud or on-premises infrastructure.

Versions

Software	Minimum version
Kubernetes	v1.34 or newer (Supported Kubernetes versions)
Helm	v3.x
MySQL	v8.0.x is required, v8.0.32 or newer; v8.0.44 or newer is recommended. Aurora MySQL 3.x releases, must be v3.05.2 or newer
Redis	v7.x

Networking

For a networked deployment, egress to these endpoints is required during both installation and runtime:

• https://deploy.wandb.ai
• https://charts.wandb.ai
• https://quay.io (used for Prometheus images)

Additional container registries may be required depending on your deployment configuration:

• https://gcr.io is needed when deploying Bufstream and etcd for Weave online evaluations.

To learn about air-gapped deployments, refer to Kubernetes operator for air-gapped instances.

Access to W&B and to the object storage is required for the training infrastructure and for each system that tracks the needs of experiments.

DNS

The fully qualified domain name (FQDN) of the W&B deployment must resolve to the IP address of the ingress or load balancer using an A record.

Load balancer and ingress

The W&B Kubernetes Operator can expose services using a Kubernetes ingress controller, which routes to service endpoints based on URL paths with different ports. The ingress controller must be accessible by all machines that execute machine learning payloads or access the service through web browsers.

Ingress controller requirements

Your Kubernetes cluster must have an IngressClass available. Common ingress controller options include:

• Nginx Ingress Controller.
• Istio.
• Traefik.
• Cloud provider ingress controllers (AWS ALB, GCP Ingress, and Azure Application Gateway).

W&B service routing

The W&B Operator routes requests automatically to multiple backend services based on path:

Path	Service	Default port	Purpose
/	wandb-app	8080	Main web application UI
/api	wandb-api	8081	API service
/graphql	wandb-api	8081	GraphQL API endpoint
/graphql2	wandb-api	8081	GraphQL API v2 endpoint
/console	wandb-console	8082	System Console
/traces	wandb-weave-trace	8722	Weave tracing service (if enabled)

Example ingress configuration

The following shows an example ingress resource created by the W&B Operator:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: wandb
  namespace: wandb
  annotations:
    nginx.ingress.kubernetes.io/proxy-body-size: "0"
spec:
  ingressClassName: nginx
  rules:
  - host: wandb.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: wandb-app
            port:
              number: 8080
      - path: /api
        pathType: Prefix
        backend:
          service:
            name: wandb-api
            port:
              number: 8081
      - path: /graphql
        pathType: Prefix
        backend:
          service:
            name: wandb-api
            port:
              number: 8081
      - path: /graphql2
        pathType: Prefix
        backend:
          service:
            name: wandb-api
            port:
              number: 8081
      - path: /console
        pathType: Prefix
        backend:
          service:
            name: wandb-console
            port:
              number: 8082
  tls:
  - hosts:
    - wandb.example.com
    secretName: wandb-tls

The W&B Operator creates and manages the ingress configuration automatically. You typically don’t need to create ingress resources manually. Make sure your cluster has a functioning ingress controller and the appropriate IngressClass configured.

SSL/TLS

W&B requires a valid signed SSL/TLS certificate for secure communication between clients and the server. SSL/TLS termination must occur on the ingress/load balancer. The W&B Server application does not terminate SSL or TLS connections.

Important: W&B does not support self-signed certificates and custom CAs. Using self-signed certificates will cause challenges for users and is not supported.

If possible, using a service like Let’s Encrypt is a great way to provide trusted certificates to your load balancer. Services like Caddy and Cloudflare manage SSL for you.

If your security policies require SSL communication within your trusted networks, consider using a tool like Istio and side car containers.

Supported CPU architectures

W&B runs on Intel and AMD 64-bit architecture. ARM isn’t supported.

Deployment method

After your infrastructure meets the preceding requirements, choose how to install W&B and provision the underlying resources. The following sections describe the recommended deployment method and the recommended approach for infrastructure provisioning.

W&B Kubernetes Operator with Helm

The recommended installation method for W&B Self-Managed uses the W&B Kubernetes Operator, deployed through Helm. This approach provides:

• Automated updates and management of W&B components.
• Simplified configuration and deployment.
• Support for all deployment scenarios (cloud, on-premises, and air-gapped).

For detailed installation instructions, see:

• Deploy W&B Platform On-premises - Primary installation guide.
• Kubernetes operator for air-gapped instances - For disconnected environments.

Infrastructure provisioning

Terraform is the recommended way to provision infrastructure for W&B production deployments. With Terraform, you define the required resources, their references to other resources, and their dependencies. W&B provides Terraform modules for the major cloud providers. For details, refer to Deploy W&B Server within Self-Managed cloud accounts.

Sizing

Use the following guidelines as a starting point when planning a deployment. W&B recommends that you monitor all components of a deployment closely and that you make adjustments based on observed usage patterns. Continue to monitor production deployments over time and make adjustments as needed to maintain performance.

When you plan capacity, you size two core components: a Kubernetes cluster for the W&B Operator workload and a MySQL database for metadata. Recommendations vary by environment (Test/Dev or Production) and, for Kubernetes only, by product mix (Models only, Weave only, or Models and Weave). W&B recommends starting with a minimum of 3 worker nodes for both Test/Dev and Production, and enabling cluster autoscaling in Production.

The following sections give per-node sizing recommendations for the Kubernetes cluster and the MySQL database.

Kubernetes sizing

Models only

Environment	CPU	Memory	Disk
Test/Dev	2 cores	16 GB	100 GB
Production	8 cores	64 GB	100 GB

Numbers are per Kubernetes worker node.

Weave only

Environment	CPU	Memory	Disk
Test/Dev	4 cores	32 GB	100 GB
Production	12 cores	96 GB	100 GB

Numbers are per Kubernetes worker node.

Models and Weave

Environment	CPU	Memory	Disk
Test/Dev	4 cores	32 GB	100 GB
Production	16 cores	128 GB	100 GB

Numbers are per Kubernetes worker node.

MySQL sizing

These recommendations don’t vary by product mix. For topology and availability guidance, see MySQL topology under MySQL.

Environment	CPU	Memory	Disk
Test/Dev	2 cores	16 GB	100 GB
Production	8 cores	64 GB	500 GB

Numbers are per MySQL node.

Cloud provider instance recommendations

After you determine the per-node CPU, memory, and disk requirements from the preceding sizing tables, use the following recommendations to pick specific cloud provider instance types and managed services that meet those requirements. These recommendations apply to each node of a Self-Managed deployment of W&B in cloud infrastructure.

AWS

Recommended managed services

• Kubernetes: Amazon EKS
• MySQL: Amazon RDS Aurora
• Object storage: Amazon S3

Environment	K8s (Models only)	K8s (Weave only)	K8s (Models&Weave)	MySQL
Test/Dev	r6i.large	r6i.xlarge	r6i.xlarge	db.r6g.large
Production	r6i.2xlarge	r6i.4xlarge	r6i.4xlarge	db.r6g.2xlarge

Google Cloud

Recommended managed services

• Kubernetes: Google Kubernetes Engine (GKE)
• MySQL: Google Cloud SQL for MySQL
• Object storage: Google Cloud Storage (GCS)

Environment	K8s (Models only)	K8s (Weave only)	K8s (Models&Weave)	MySQL
Test/Dev	n2-highmem-2	n2-highmem-4	n2-highmem-4	db-n1-highmem-2
Production	n2-highmem-8	n2-highmem-16	n2-highmem-16	db-n1-highmem-8

Azure

Recommended managed services

• Kubernetes: Azure Kubernetes Service (AKS)
• MySQL: Azure Database for MySQL
• Object storage: Azure Blob Storage

Environment	K8s (Models only)	K8s (Weave only)	K8s (Models&Weave)	MySQL
Test/Dev	Standard_E2_v5	Standard_E4_v5	Standard_E4_v5	MO_Standard_E2ds_v4
Production	Standard_E8_v5	Standard_E16_v5	Standard_E16_v5	MO_Standard_E8ds_v4
